Hello. I'm using an input manager. I want to branch in the schematic depending on which of the 8 directions the controller stick is tilted.(e.g. Xbox controller)

for example, Red part = stick is input to the right yellow = bottom right , green = Bottom , pink =bottom left , blue = left , white = upper left , purple =top , Orange =Insufficient stick tilt and undetectable range ,

Is it possible to set this? Please forgive me if I hear something strange.

gamingislove

Can't see the image, but generally, this is done via multiple Input Key nodes checking the axis for the horizontal and vertical input.

E.g. first check if horizontal axis is greater 0 or less than 0 (or maybe with a threshold, greater 0.1 and less than -0.1). Next, check the vertical input for the same, etc. The failed/no input slot of the node would be if the axis wasn't used (so no input on that axis).

That way you can create the different directions and continue in the schematic.

sss

thank you for your reply. It seems to be solvable. thank you. You don't need to read any of the following. However, I will briefly write the solution for the benefit of others.

I saved the horizontal and vertical values (0 to 1) of the controller in variables. I used the "Change Variable" node. After that, I calculated the distance from (0,0) to (Horizontal,Vertical) with the Pythagorean theorem. Also calculated the angle. With this, we were able to get 8 directions of input only when the input of the controller is above a certain level.

sss

Hello. Let me ask you one more question. Is it possible to do square root calculations in Makinom? For example √3=???

I don't mind without it. But I would like to know if there is.

Acissathar

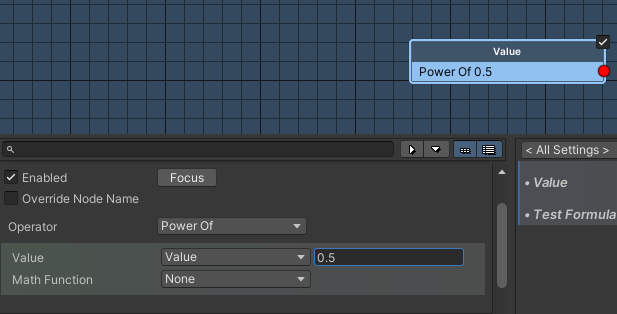

@sss You should be able to use Power Of in the Math part of a value field, and do a fractional power (3^½ = √3)

sss

@Acissathar thank you for your reply. I found Power Of. And solved. thank you.

gamingislove

I'll look into adding a math function for root calculation with a defined value :)

sss

thank you for your reply. It's just that my knowledge of English is a little lacking. So, no problem. thank you.

sss

Hello. I want to check the script to study C#. Is there a way to check how the settings in the schematic are written in the C# script?

For example, can I confirm how the following node settings are written in the script?

gamingislove

This node is part of the Makinom source code project - so extract it and search for the ChangeVariablesNode class in the opened Visual Studio project.

sss

thank you for your reply. i will try.

sss

Hello. I have a question about the combination of the schematic and the asset called "Feel"(More Mountains).

Can I call 'MMFeedbacks' and start it in my schematic? I'm not good at C#, so if possible, I would appreciate it if you could tell me specifically what settings I should do.

gamingislove

AFAIK MMFeedbacks are components, so you can easily call functions on it or change fields via the function nodes. E.g. Call Function node using a component on a game object.

sss

thank you for your reply. it was very helpful.

I found out today that you are on summer vacation. Sorry for the inconvenience during the holidays. Have a nice vacation.

gamingislove

No worries, I'm only mostly out of office :)

sss

Hello. I have a question about tagged machines.

Suppose we have node A, node B, and node C.

（1） Execute these nodes together in one schematic.

（2） Use ''start tagged machine node'' three times in one schematic, and run each node in each tag machine's schematic. tagged machine 1 - node A tagged machine 2 - node B tagged machine 3 - node C

Is there a difference in the total number of frames between （1） and （2）? Also, is there a difference in the time (seconds) it takes to finish?

gamingislove

Depends on the Start Tagged Machine node's setup - e.g. using the Wait option naturally waits for the tagged machine to finish before continuing with the next node. It also depends on whatever the tagged machine itself does in it's schematic.

Generally, if no wait time is involved anywhere (i.e. starting tagged machine without waiting and no wait times within the tagged machine's schematic), tagged machine 1 will start and finish before tagged machine 2 will start, but all should perform within the same frame.

sss

thank you. That helps a lot. I feel that the tagged machine is very useful. thank you.

sss

Hello.

I have a question about how to display icon images on the HUD. Makinom > HUD > Content > Icon Content Icon Content > Image > Source Image I set an image to it

However, when I run the game, the Source Image becomes none. (If I manually reassign it, it will be displayed correctly) The screen will display a white square blank on the HUD.

What could be the reason why the Source Image becomes None when I run the game?

gamingislove

If you just want to display a specific icon, just use a regular Image component from Unity UI. The HUD content components of Makinom/ORK manage the displayed content based on what the content provider of the HUD is and the setup of the content component (e.g. the combatant a HUD is displayed for).

If you actually want to display an icon based on that content and it gets none, it's most likely because whatever you display in the HUD doesn't have an icon.
